Drill Press M

Drill Press M - The mobile tool The Drill Press M is a robust tool that is flexible enough to be used on-site or in the workshop. Drill machine M does not require compressed air or industrial strength current so can be utilised on domestic electrical...

9 Spindle Drilling Head | G9

Nine spindle drilling head without swing arm for use with MINIPRESS P / MINIPRESS M machines. For efficent line drilling within the 32mm tier system. Drilling head are fitted with quick connect chucks as standard. Spindle distance 32mm Drill bits larger...

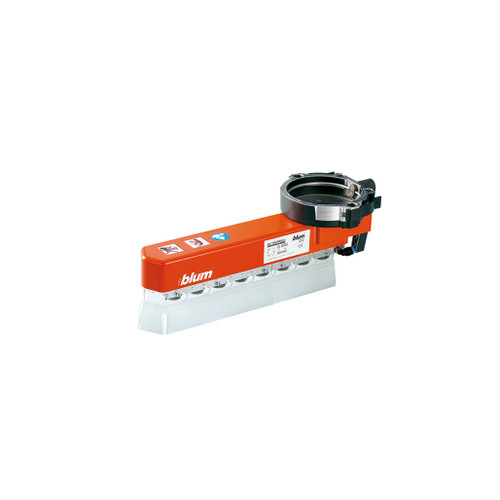

8 Spindle Drilling Head | G10

Eight spindle drilling head without swing arm for use with MINIPRESS P / MINIPRESS M machines. For the assembly of AVENTOS lift mechanisms, box front fixings and cabinet profiles. Drilling head is fitted with quick connect chucks as standard. Spindle...

Extension Ruler Sym-metrical | H11

Extension for basic ruler supplied, with the MINIPRESS P / MINIPRESS M drilling and insertion machines. 300-1550mm Calibration 1250mm Length Item package: 1 piece

Extension Ruler Sym-metrical | H12

MINIPRESS P / MINIPRESS M machine attachment, extension for extension ruler MZL.1250. 1550-2800mm Calibration 1250mm Length Item package: 1 piece

Support for Extension Ruler | H13

Extension ruler support for the MINIPRESS P / MINIPRESS M drilling and insertion machines Item package: 1 piece

Swivel Stop | H14

Swivel stop for the MINIPRESS P / MINIPRESS M rulers, enable quick and precise manufacturing of furniture. Item package: 1 piece

Narrow Swivel Stop LH | H15

For left-handed installations, narrow swivel stop for positioning between other stops to MINIPRESS P / MINIPRESS M rulers, enable quick and precise manufacturing of furniture. Item package: 1 piece Assembly Possibilities: Front Assembly (A1) AVENTOS HF |...

Narrow Swivel Stop RH | H16

For right-handed installations, narrow swivel stop for positioning between other stops on MINIPRESS P / MINIPRESS M rulers, enable quick and precise manufacturing of furniture. Item package: 1 piece Assembly Possibilities: Front Assembly (A1) AVENTOS HF...

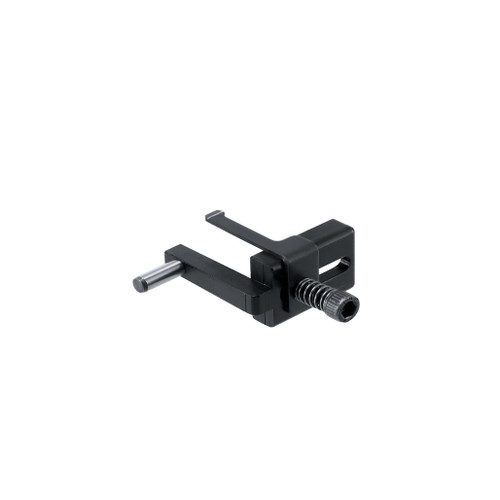

Centre Marking Stop | H13

MINIPRESS P / MINIPRESS M machine attachment. Centre marking stop offers precise processing of plain and rebated work pieces. Connection stop to ruler: by insertion into ruler hole, height adjustable. Width of stop: 42mm Item package: 1 piece

MINIPRESS Dual Application | H19

MINIPRESS P / MINIPRESS M machine attachment. Zinc diecast dual application stop offers precise processing of plain and rebated work pieces. Connection stop to ruler: by insertion into ruler hole. Width of stop: 74mm Distance between stop positions: 32mm...

Quick connect Chuck Set | I3

Quick connect chuck (5 pcs, sleeve, retainer, cover) for MINIPRESS P / MINIPRESS M machines. Rivet shank Ø: 10mm Sense of rotation: Left/right Fixing of drilling chuck, gear box side: Set screw M8x8 Drill fixing: Set screw M6x6 Item package:...

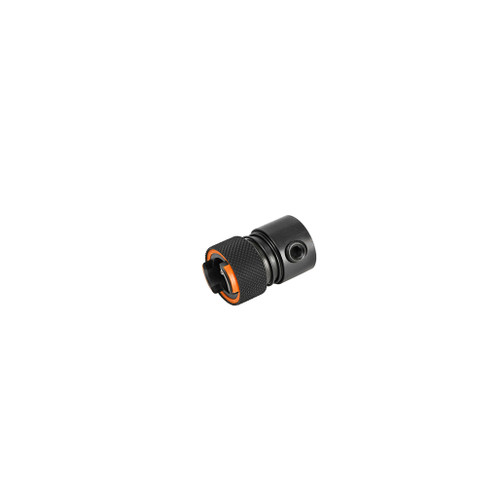

Quick connect Chuck LH | I8

Quick connect chuck sleeve for MINIPRESS M / MINIPRESS P / MINIDRILL, left hand Fixing of drilling chuck, gear box side: set screw M8x8 Item package: 1 piece

Quick connect Chuck RH | I9

Quick connect chuck sleeve for MINIPRESS M / MINIPRESS P machines, right hand suitable for MINIDRILL Fixing of drilling chuck, gear box side: set screw M8x8 Item package: 1 piece

Quick Connect Sleeve | I10

Quick connect drill chuck for use with MINIPRESS P / MINIPRESS M drilling and insertion machines. Rivet shank Ø: 10mm Drill fixing: set screw M6x6

Quick Connect Chuck Cover | I11

Cover for quick connect chuck for MINIPRESS P / MINIPRESS M drilling and insertion machines. Item package: 1 piece

Locking Device | I12

MINIPRESS P / MINIPRESS M locking device for MZK.1900 / MZK.8800 Item package: 1 piece

Drilling Head Connector | I13

MINIPRESS P / MINIPRESS M drillhead connector, for quick connect chuck MZK.1900 / MZK.8800 Item package: 1 piece

Drilling Depth Stop| I14

Set of two drilling depth stops for MINIPRESS P / MINIPRESS M earlier than 2010 Item package: 1 piece

MINIPRESS Head Retro Fit Kit | I15

Retro fit kit for drilling head MINIPRESS P / MINIPRESS M earlier than 2010 Item package: 1 piece

Insertion Ram | J1

MINIPRESS P / MINIPRESS M insertion ram, for Blum furniture hinges of all opening angles - except mini hinge with 26mm boss. Item package: 1 piece Assembly Possibilities: Front Assembly (C1) CLIP-top BLUMOTION | CLIP-top | MODUL Hinge (Require x1) To...

Insertion Ram | J2

MINIPRESS P / MINIPRESS M insertion ram for horizontal zinc mounting plates 177H5100 / 177H5130 Item package: 1 piece Assembly Possibilities: Front Assembly (A2) AVENTOS HF Horizontal mounting plate (Require x1) Cabinet Assembly (A6) AVENTOS HF | HK-XS...

Insertion Ram | J3

MINIPRESS P / MINIPRESS M insertion ram for horizontal mounting plates 177H3100 / 177H3130 Item package: 1 piece Assembly Possibilities: Front Assembly (A2) AVENTOS HF Horizontal mounting plate (Require x1) Cabinet Assembly (A6) AVENTOS HF | HK-XS...

Insertion Ram | J4

MINIPRESS P / MINIPRESS M insertion ram for cruciform mounting plates 174H6100.05 / 174H6130.05 Item package: 1 piece Assembly Possibilities: Cabinet Assembly (A5) AVENTOS HF | HK-XS Cruciform mounting plates (Require x1) (C2) CLIP-top | MODUL Cruciform...

Insertion Ram | J6

MINIPRESS P / MINIPRESS M insertion ram for METABOX front fixing bracket ZSF.1300 / ZSF.1800 Item package: 1 piece Assembly Possibilities: Front Assembly (D1) METABOX Front fixing (Require x1) To find out more information see: 2018/2019 Catalogue...

Insertion Ram | J7

MINIPRESS P / MINIPRESS M insertion ram for METABOX front fixing bracket ZSF.1610 Item package: 1 piece Assembly Possibilities: Front Assembly (D1) METABOX Front fixing (Require x1) To find out more information see: 2018/2019 Catalogue and technical...

Insertion Ram | J8

Insertion ram for MINIPRESS P / MINIPRESS M to insert front adjuster 295.1000 Item package: 1 piece Assembly Possibilities: Front Assembly (D2) MOVENTO | TANDEM Front adjuster (Require x1) To find out more information see: 2018/2019 Catalogue and...

Insertion Ram | J9

MINIPRESS P / MINIPRESS M insertion ram for Blum wall hanging bracket 48N0610 Item package: 1 piece Assembly Possibilities: Cabinet Assembly (E4) Wall hanging bracket 48N0610.02 | 48N0610.03 (Require x1) To find out more information see: 2018/2019...

Insertion Ram | J11

MINIPRESS P / MINIPRESS M insertion ram for Blum cabinet connector 40.0600 Item package: 1 piece Assembly Possibilities: Cabinet Assembly (E1) Cabinet connector 40.0600 (Require x1) To find out more information see: 2018/2019 Catalogue and technical...

Insertion Ram | J10

MINIPRESS P / MINIPRESS M insertion ram for Blum cabinet connector housings 40.0200 | 40.0600 | 40.0700 Item package: 1 piece Assembly Possibilities: Cabinet Assembly (E1) Cabinet connector housing 40.0200 | 40.0600 | 40.0700 (Require x1) To find out...

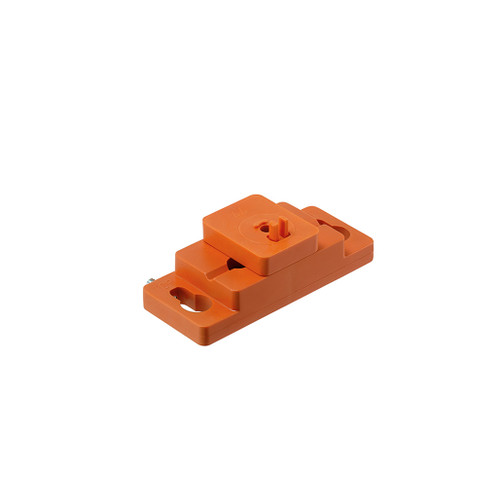

Insertion Ram | J12

MINIPRESS P / MINIPRESS M insertion ram for Blum cabinet connector 42.07 Item package: 1 piece Assembly Possibilities: Cabinet Assembly (E1) Cabinet connector 42.07 (Require x1) To find out more information see: 2018/2019 Catalogue and technical...

2.5 x 57mm Drill Bit with Roof Tip LH | K1

Drill bit with roof tip, Ø2.5 x 57mm, left hand rotation for use with MINIPRESS P / MINIPRESS M machines. Item package: 1 piece Assembly Possibilities: Front Assembly (A1) AVENTOS HF | HK-XS Hinge (Require x2) (A2) AVENTOS HF Horizontal mounting...

2.5 x 57mm Drill Bit with Roof Tip RH | K2

Drill bit with roof tip, Ø2.5 x 57mm, right hand rotation for use with MINIPRESS P / MINIPRESS M or bench mounted drills. Item package: 1 piece Assembly Possibilities: Front Assembly (A2) AVENTOS HF Horizontal mounting plate (Require x1)...

3 x 57mm Drill Bit LH | K3

Drill bit Ø3 x 57mm left hand rotation for use with MINIPRESS P / MINIPRESS M drilling and insertion machines. Item package: 1 piece Assembly Possibilities: Cabinet Assembly (E6) Line drilling (9 Spindle Head) (Require x5) (E6) Line drilling...

3 x 57mm Drill Bit RH | K4

Drill bit Ø3 x 57mm right hand rotation for use with MINIPRESS P / MINIPRESS M or bench mounted drills. Item package: 1 piece Assembly Possibilities: Cabinet Assembly (E6) Line drilling (9 Spindle Head) (Require x4) (E6) Line drilling (3...

5 x 57mm Drill Bit LH | K5

Drill bit Ø5 x 57mm left hand rotation for use with MINIPRESS P / MINIPRESS M machines. Item package: 1 piece Assembly Possibilities: Front Assembly (A2) AVENTOS HF Horizontal mounting plate (Require x1) (A3) AVENTOS HF | HK-XS Horizontal...

5 x 57mm Drill Bit RH | K6

Drill bit Ø5.0 x 57mm right hand rotation for use with MINIPRESS P / MINIPRESS M or bench mounted drills. Item package: 1 piece Assembly Possibilities: Front Assembly (A2) AVENTOS HF Horizontal mounting plate (Require x1) (A3) AVENTOS HF...

5 x 57mm Drill Bit with Roof Tip LH | K7

Drill bit with roof tip Ø5 x 57mm left hand rotation for use with MINIPRESS P / MINIPRESS M machines. Item package: 1 piece

5 x 57mm Drill Bit with Roof Tip RH | K8

Drill bit with roof tip Ø5 x 57mm right hand rotation for use with MINIPRESS P / MINIPRESS M or bench mounted drills. Item package: 1 piece

8 x 57mm Drill Bit LH | K9

Drill bit Ø8 x 57mm left hand rotation for use with MINIPRESS P / MINIPRESS M machines. Item package: 1 piece Assembly Possibilities: Front Assembly (A1) AVENTOS HF | HK-XS Hinge (Require x2) (C1) CLIP-top BLUMOTION | CLIP-top | MODUL Hinge...

8 x 57mm Drill Bit RH | K10

Drill bit Ø8 x 57mm right hand rotation for use with MINIPRESS P / MINIPRESS M or bench mounted drills. Item package: 1 piece Assembly Possibilities: Front Assembly (A4) AVENTOS HF Horizontal Blum distance stop (Require x1) (B2) AVENTOS...

8 x 57mm Drill Bit No Tip LH | K11

Drill bit Ø8 x 57mm without tip for thin and profiled doors, left hand rotation for use with MINIPRESS P / MINIPRESS M machines. Item package: 1 piece

10 x 57mm Drill Bit LH | K12

Drill bit Ø10 x 57mm left hand rotation for use with MINIPRESS P / MINIPRESS M drilling and insertion machines. Item package: 1 piece Assembly Possibilities: Front Assembly (A2) AVENTOS HF Horizontal mounting plate (Require x1) (D1) LEGRABOX...

10 x 57mm Drill Bit RH | K13

Drill bit Ø10 x 57mm right hand rotation for use with MINIPRESS P / MINIPRESS M or bench mounted drills. Item package: 1 piece Assembly Possibilities: Front Assembly (A2) AVENTOS HF Horizontal mounting plate (Require x1) (D1) LEGRABOX Front...

20 x 57mm Fittings Drill Bit RH | K15

Drill bit Ø20 x 57mm right hand rotation for use with MINIPRESS P / MINIPRESS M or bench mounted drills. Item package: 1 piece Assembly Possibilities: Front Assembly (D2) MOVENTO | TANDEM Front adjuster (Require x1) To find out more...

25 x 57mm Fittings Drill Bit RH | K16

Drill bit Ø25 x 57mm right hand rotation for use with MINIPRESS P / MINIPRESS M or bench mounted drills. Item package: 1 piece Assembly Possibilities: Cabinet Assembly (D7) SERVO-DRIVE Bracket profile attachment (Require x1) (E1)...

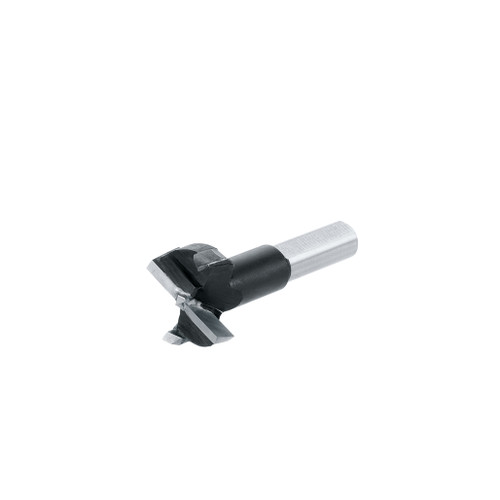

26 x 57mm Fittings Drill Bit RH | K17

Drill bit Ø26 x 57mm right hand rotation for use with MINIPRESS P / MINIPRESS M or bench mounted drills. Item package: 1 piece Assembly Possibilities: Front Assembly (C1) CLIP-top Mini hinges (Require x1) To find out more information...

28 x 57mm Fittings Drill Bit RH | K18

Drill bit Ø28 x 57mm right hand rotation for use with MINIPRESS P / MINIPRESS M or bench mounted drills. Item package: 1 piece Assembly Possibilities: Cabinet Assembly (E1) Vertical cabinet connectors 40.0110N | 40.0620 | 40.0200 | 40...

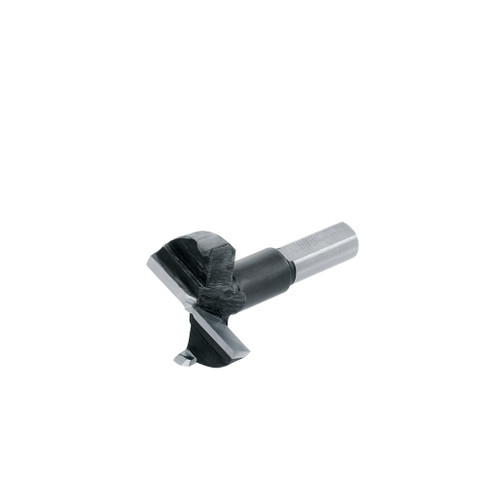

35 x 57mm Fittings Drill Bit RH | K19

Drill bit Ø35 x 57mm right hand rotation for use with MINIPRESS P / MINIPRESS M or bench mounted drill. Item package: 1 piece Assembly Possibilities: Front Assembly (A1) AVENTOS HF | HK-XS Hinge (Require x1) (C1) CLIP-top BLUMOTION |...

35 x 57mm Fittings Drill Bit No Tip RH | K20

Drill bit Ø35 x 57mm without tip for use on thin or profiled doors, right hand rotation for use with MINIPRESS P / MINIPRESS M machines. Item package: 1 piece Assembly Possibilities: Cabinet Assembly (A8) AVENTOS HF SERVO-DRIVE switch...
