For use with cabinet heights from 180mm to 600mm, widths up to 1800mm and a power factor of 220 - 500.
To determine power factor - Multiply the cabinet height (mm) by the door weight include double handle weight (kg)
AVENTOS HK-S is the perfect choice for small lift systems in wall or tall cabinets, e.g. above refrigerators and ovens. Thanks to its compact dimensions, the lift mechanism fits snugly into small cabinets and excels in terms of simple assembly and user convenience. Fronts open and close with ultimate ease, thanks to BLUMOTION. Wall cabinets can be left open in any position while cooking, allowing freedom of movement and easy access.
- HK-S stay lift is ideal for small cabinets
- Perfect motion with a 107° opening angle
- 3-dimensional front adjustment
- No other hinges are required
Versatile use of materials- can be used with wooden fronts, wide and narrow aluminium frames. Optional 100° and 75°opening angle stops ensure that little space is needed above the cabinet. (see recommended below to purchase)

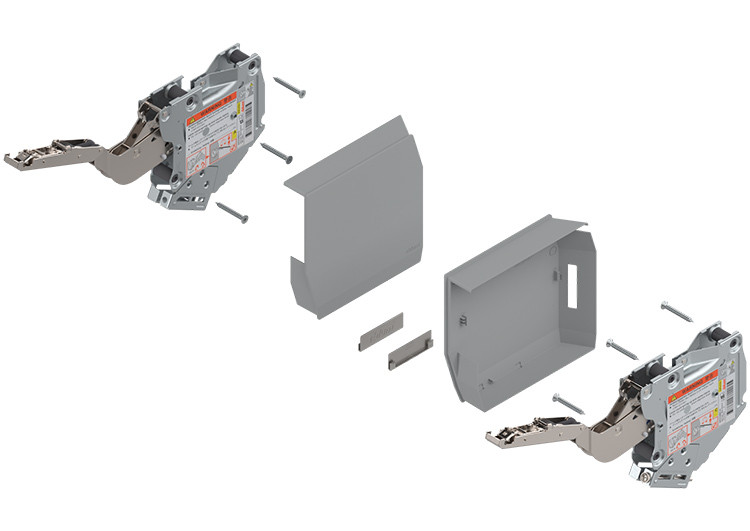

AVENTOS HK-S lift mechanism: 20K2B00
Power factor: 220 - 500
Minimum internal cabinet depth: 163mm
Minimum internal cabinet height: 150mm
Fixing to cabinet: Screw-on
Closing mechanism: BLUMOTION soft close
Lift material: Steel/Zinc plated
Item package: L+R mechanism, cover caps, 6 chipboard screws 35 x Ø4.0mm
Installation instructions: Click here
*Please note front mounting plates to be purchased separately.
To find out more information and the entire range: Catalogue and technical manual
