NEW 450mm TANDEM single extension runners with integrated TIP-ON push to open– enhanced convenience for you as no separate TIP-ON latch to fit, giving a cost saving.
Depth adjustment of +2/-3.5 and an offering an optional one part synchronisation linkage at the rear, for secure triggering even on wide fronts.

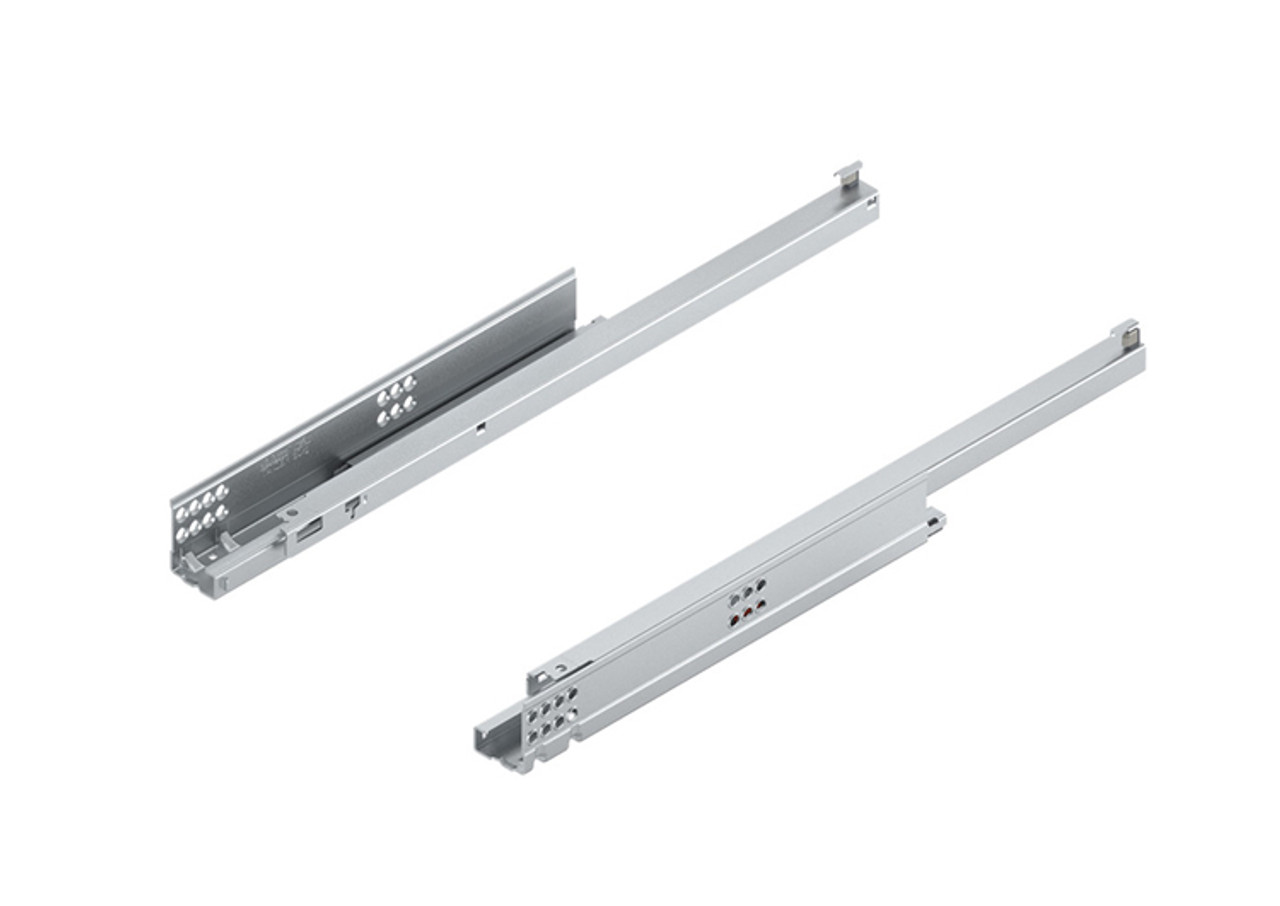

TANDEM TIP-ON push to open runners
For wooden drawer sides 11-16mm
Nominal length: 450mm
Dynamic load bearing: 30kg
Colour / finish: Zinc plated
Requires locking device
Item package: Pair
*Please note: these runners are non soft closing.
Drawer Box Construction:
Cutting dimensions for back & front = Internal cabinet width -42mm (maximum drawer side thickness 16mm)
Cutting dimensions for side length = Drawer side NL -10mm
Installation instructions: Click here
